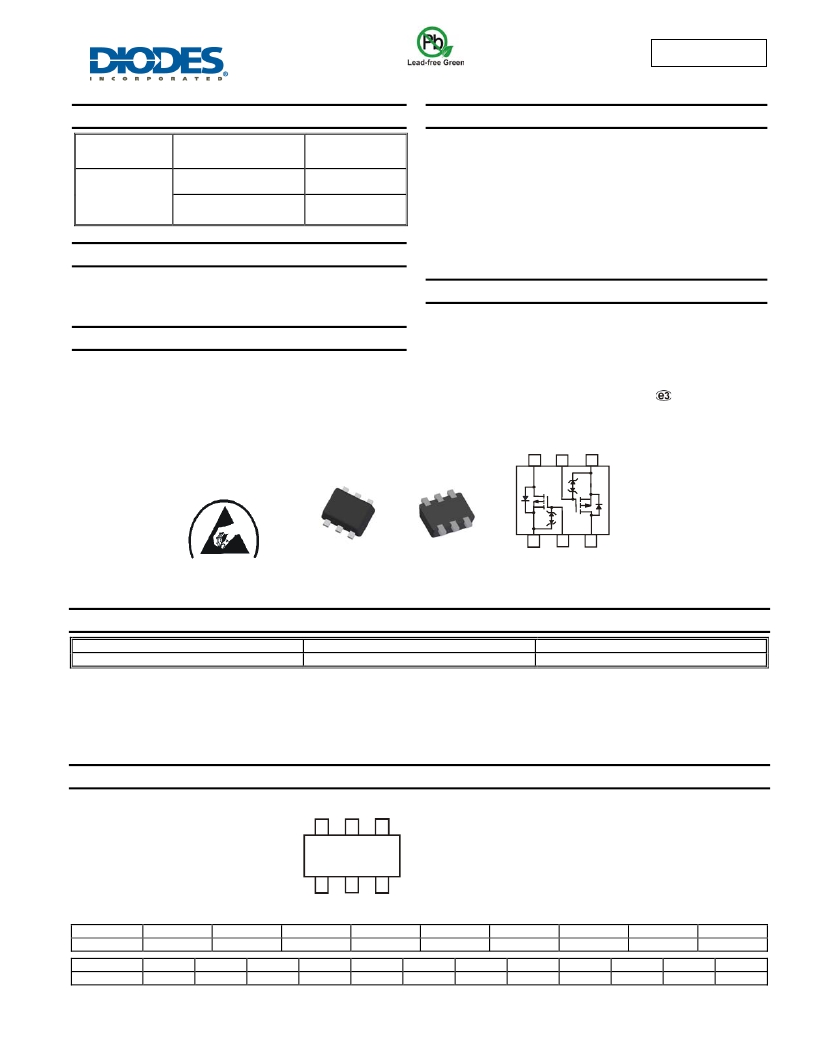

DMP2004VK
DUAL P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Features
V (BR)DSS
-20V
R DS(ON) max
0.9 ? @ V GS = -4.5V
1.4 ? @ V GS = -2.5V
I D max
T A = 25°C
-530A
-440A
?
?
?
?
?
?
Dual P-Channel MOSFET
Low On-Resistance
Very Low Gate Threshold Voltage V GS(TH) < 1V
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
?
?
ESD Protected Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Description
This MOSFET has been designed to minimize the on-state resistance
?
Halogen and Antimony Free. “Green” Device (Note 3)
(R DS(on) ) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Mechanical Data
? Case: SOT563
Applications
?
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
?
?
?
?
Battery Charging
Power Management Functions
DC-DC Converters
Portable Power Adaptors
?
?
?
?
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
Weight: 0.006 grams (approximate)
SOT563
D 2
S 2
G 1
G 2
S 1
D 1
ESD PROTECTED
Top View
Bottom View
Top View
Internal Schematic
Ordering Information (Note 4)
Part Number
DMP2004VK-7
Case
SOT563
Packaging
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. ?
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
PAB = Marking Code
PAB
YM
YM = Date Code Marking
Y = Year (ex: U = 2007)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
2007
U
2008
V
2009
W
2010
X
2011
Y
2012
Z
2013
A
2014
B
2015
C
Month
Code
Jan
1
Feb
2
Mar
3
Apr
4
May
5
Jun
6
Jul
7
Aug
8
Sep
9
Oct
O
Nov
N
Dec
D
DMP2004VK
Document number: DS30916 Rev. 6 - 2
1 of 5
www.diodes.com
August 2012
? Diodes Incorporated
